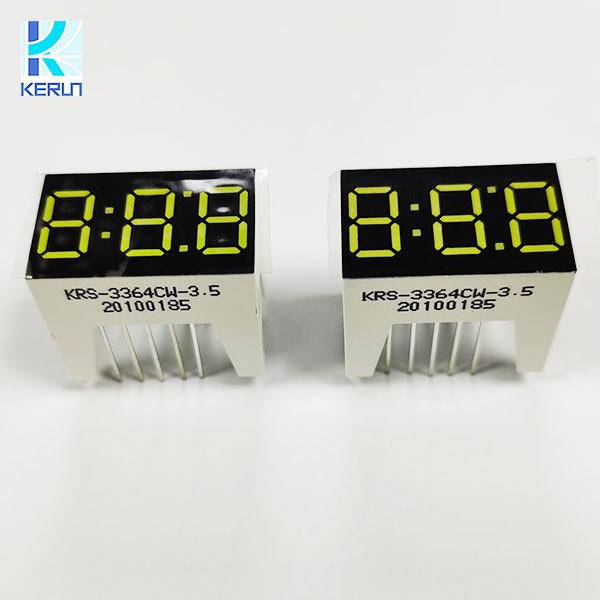

White Color Common Anode Seven Segment Display 3 Digit 0.36 Inch
Common Cathode Seven Segment Clock LED Display With White Color
Product Features:
1) Low consumption ,working under low voltage and current .
2) High brightness ,short response time, high frequency.
3) Small size, lightweight, easy soldered ,great Impact resistance.
4) Solid state encapsulation, good stability .
5) Long life ,more than 50,000 hours .
6) Great display effect ,big viewing angle.
a, Types: 1 digit, 2 digits, 3 digits, 4 digits, 5 digits, 6 digits available with black or grey surface.
b, Colors: red(640nm),orange(610nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm)
c, Size: 0.25" to 0.8" (0.25”,0.28",0.31", 0.36", 0.39", 0.4", 0.5",0.52", 0.56",0.8")
d, Customized requirements can meet.
customization available.
Various types based on digit quantity (OEM &ODM available)
| Types | Type 1 | Type 2 | Type 3 | Type 4 |
| number of digits | 1 digit | 2 digits | 3 digits | 4 digits |
Different size for 3 digits 7 segment led display (OEM&ODM available)
| | Digit height | PIN quantity | Common joint | display size |
| 1. | 0.25 inches | 10 | 10 8 6 | 15.00*8.00*4.00mm |
| 2. | 0.28 inches | 12 | 12 9 8 | 22.53*10.00*6.10mm |
| 3. | 0.31 inches | 12 | 12 9 8 | 23.50*11.00*5.00mm |
| 4. | 0.36 inches | 12 | 12 9 8 | 22.00*14.00*7.20mm |
| 5. | 0.39 inches | 16 | 1 14 5 7 | 30.02*12.80*7.00mm |
| 6. | 0.40 inches | 16 | 12 9 8 | 20.20*20.20*5.90mm |
| 7. | 0.52 inches | 12 | 12 9 8 | 37.80*17.50*7.00mm |
| 8. | 0.56 inches | 12 | 12 9 8 | 37.60*19.008.00mm |
| 9 | 0.80 inches | 12 | 12 9 8 | 59.20*27.50*8.30mm |
Product date sheet:
Application for Standard LED Digital Displays
- Audio Equipment or instrument panels;
-- General using for digital indicators;
-- Multimedia products;
-- Bank exchange rate display;
-- LED clock display;
-- Display for gas station and other various display areas of equipment/machine.
